Fig. 4


Download original image

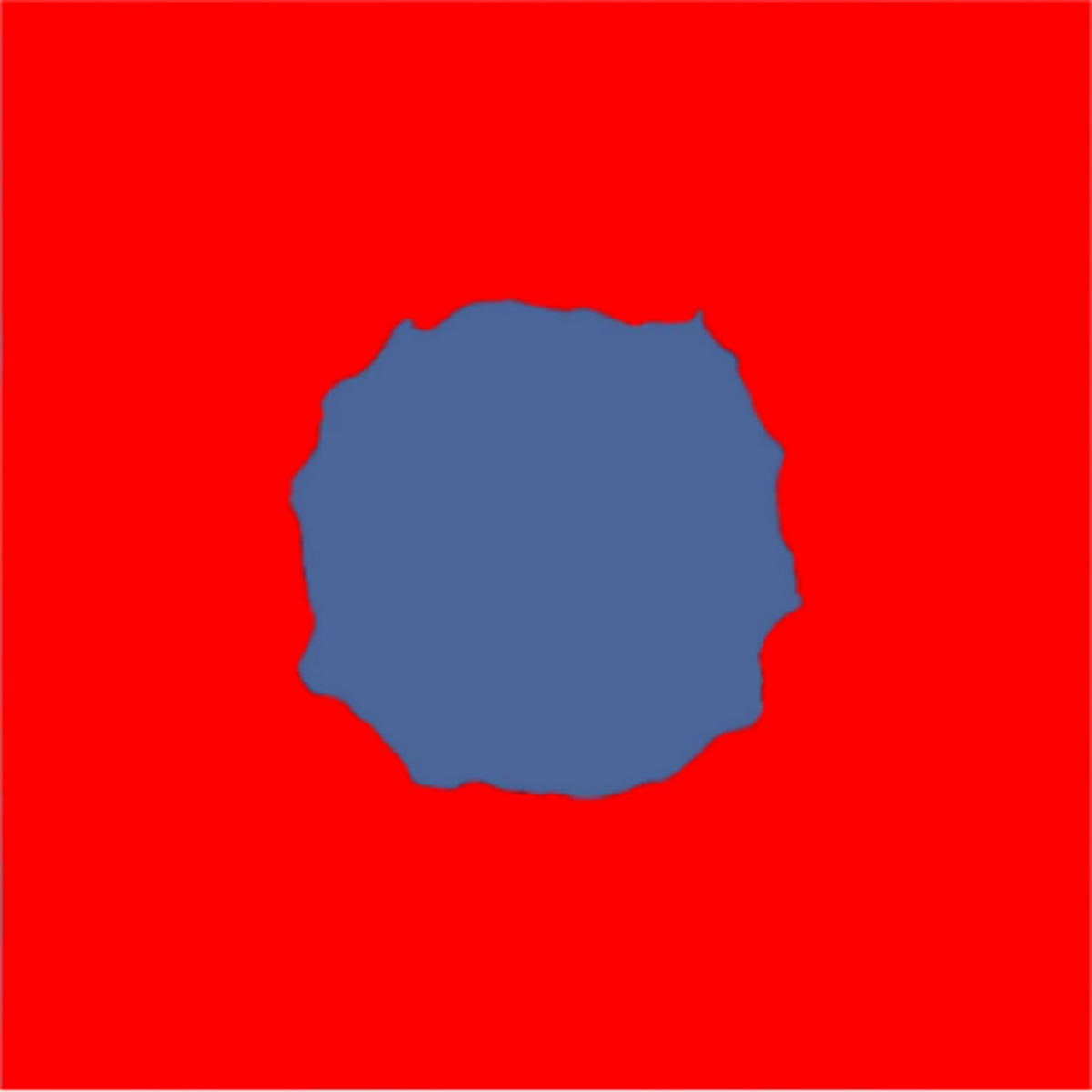

Top view of the instantaneous numerical open eye, obtained at Q = 0.6 l/min. The numerical results are obtained with a minimum grid size of Δx = 527 μm and the oil interface is colored in red.
